Overview

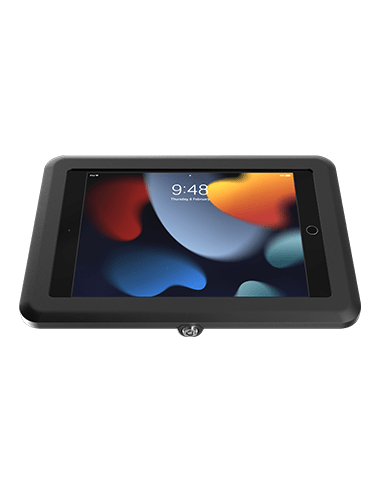

The Elite Evo Wall Mount offers high security and durability in a sleek and stylish casing. Featuring a 4 point lock and a strong coated metal faceplate to protect your iPad or android tablet.
Download fact sheet
Supported Apple devices
Supported Apple devices
iPad 10.9'" - 10th Gen
iPad 10.2" - 7th, 8th & 9th Gen
iPad Pro 12.9" - 3rd, 4th & 5th Gen
iPad Pro 9.7" - 2nd Gen
iPad Air 9.7" - 2nd Gen
Supported Samsung Devices
Supported Samsung Devices
Galaxy Tab 10.4" - A7
Galaxy Tab 11" - S7 & S8
Supported Microsoft Devices
Supported Microsoft Devices
Surface Pro 13" - 8 & 9
Recommended Positioning Height
Recommended Positioning Height
51.2” - 59” (130 - 150 cm)
Measuring
Measuring
Height: 10.24” (260 mm)
Width: 11.69” (297 mm)
Weight
Weight
3.97 Ibs (1.80 kg)
Materials
Materials
Die-cast aluminum with powder coating

Setup Guide

Screw Mount
Optional Extras
01 Drill pilot holes
Lift the Evo pole base cover from the base plate & drill pilot holes. Refer to the mounting guide for assistance.
02 Running charger cable
If you are running your charging cable through the surface, ensure to drill a larger hole to feed cable through.
03 Screw down stand
Screw down your Evo pole through the base plate using the wood screws provided & then press down base cover.
04 Screw down case & remove faceplate
Place Elite holder on Evo pole & screw in the 4 screws. Unlock holder with keys provided & remove faceplate.
05 Feed cable & lock faceplate
Plug in charging cable & place tablet into case, place faceplate back on & lock.
01 Elite Holder Cable Cutout
Unscrew existing closed cable cutout & install the open cable cutout included with stand.
02 Evo X Rotation Lock
Place case on the pole in desired rotation & screw lock screw as shown to lock rotation.
03 Evo X Tilt Adjustment
Lock Using Allen key provided, tighten screw at desired angle to lock in position.
Problems during setup?
