Support

Overview

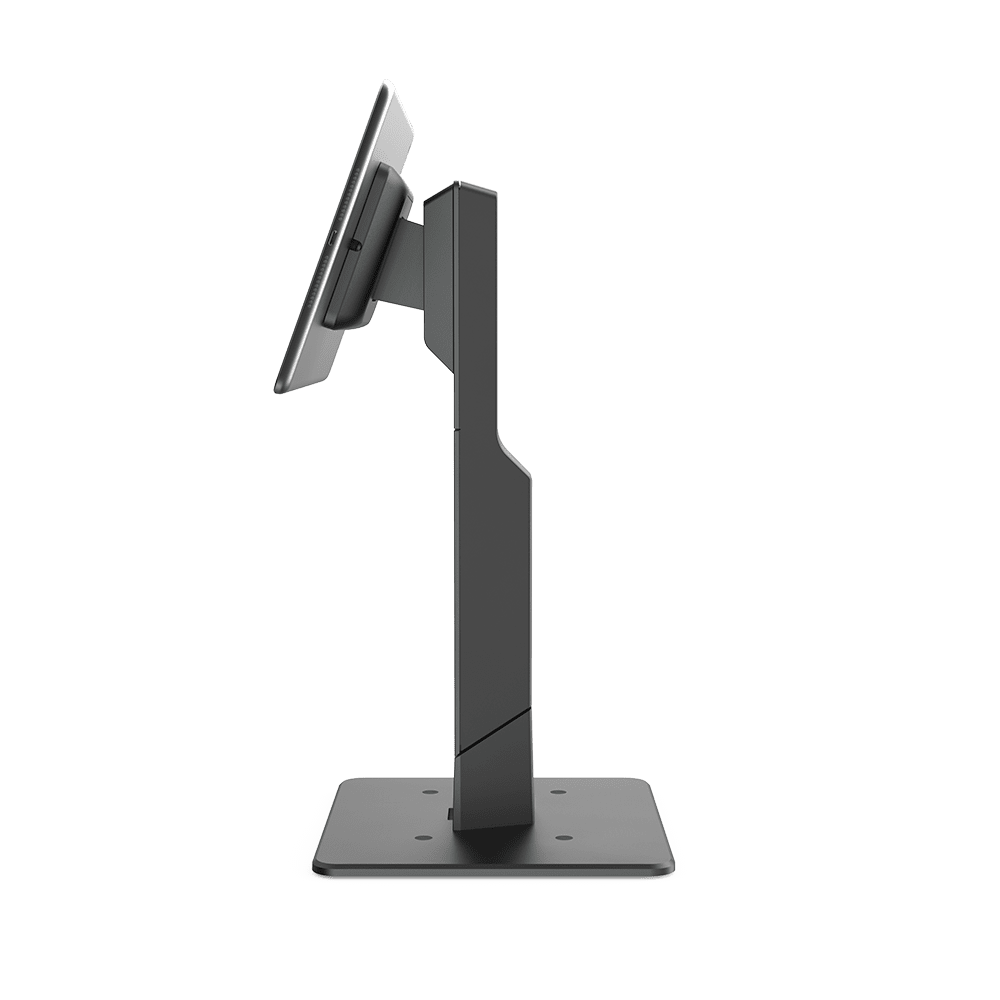

For support with the Touch Gemini, view our setup guide, specifications, and fact sheet. We offer all essential resources for an optimal experience with our Gemini device.
Download fact sheet
Supports All Tablets
Supports All Tablets
Might update your iPad or android tablet in the future? The Touch tablet holder supports all devices and is secured by 4 strong 3M Command Strip adhesives included with the stand.
Measuring
Measuring
Height: 15.47” (393mm)
Width: 8.27” (210mm)

Weight
Weight
5.29 Ibs (2.40 kg)
Materials
Materials
Die-cast aluminum with powder coating

Setup Guide

Screw Mount
Freestanding
Optional Extras
01 Drill pilot holes & cable hole
Drill pilot holes to assist with screw base mounting. Drill another larger hole if running cable through surface.
02 Screw down stand & apply covers
Screw down your stand using the mounting screws provided and push in the rubber covers.
03 Unscrew bracket from stand
Unscrew top bracket that holds the adhesive and seperate.
04 Peel off adhesive & stick to center of tablet
Peel off adhesive & place the bracket in the center of your tablet. Press & hold for 20 seconds.
05 Screw holder to stand & feed charging cable through
Place Touch holder onto Gemini stand and screw in 4 screws to secure. Feed charging cable through the stand.
06 Screw back top bracket & plug cable
Re-attach top bracket and secure with the lock screw. Plug in the charging cable.
01 Unscrew bracket from stand
Unscrew top bracket that holds the adhesive and seperate.
02 Peel off adhesive & stick to center of tablet
Peel off adhesive & place the bracket in the center of your tablet. Press & hold for 20 seconds.
03 Screw holder to stand & feed charging cable through
Place Touch holder onto Gemini stand and screw in 4 screws to secure. Feed charging cable through the stand.
04 Screw back top bracket & plug cable
Re-attach top bracket and secure with the lock screw. Plug in the charging cable.
01 Power & PoE Access
For power bank and PoE access, remove the magnetic panel for access to the cable channel.
Problems during setup?
